Core Barrel With Bullet Teeth for rock pile foundation
Application: Medium weathered rock, bedrock;
Drilling diameter: 600-3000 mm or as required
Kelly Box: 130 mm, 150 mm, 200 mm (optional).
Material: Q355B
Video outgoing-inspection : Provided
Machinery Test Report : Provided
Drilling diameter: 600-3000 mm or as required
Kelly Box: 130 mm, 150 mm, 200 mm (optional).
Material: Q355B
Video outgoing-inspection : Provided
Machinery Test Report : Provided
φ600—φ3000
Quantity
report download
CUSTOMIZED INQUIRY
Product Introduction
Core barrel with bullet teeth is used for cutting annular ring in hard rock, concrete and in steel reinforced concrete; consequentially the central core can be carried up by the core barrle or broken by rock bucket, rock auger or Cross Core Barrel.
Working principle：
Rotary drive head transmits pressure to the core barrel bits and through the cutting ring of the cylindrical structure, it performs circumferential cutting on the rock layer, forming a circular fracture zone with a width of about 110-120mm, separating the rock core from the surrounding rock mass. The core principle is to use the shear force generated by the torque of the drilling rig to destroy the rock structure.
Feature:
Cutting ring with rock bits, reasing the internal stress of rock;
Rock bits perform stage breaking and drilling;
Small barrel facilitates the coring operation, large barrel performs stage breaking.
Applicable layers: backfilling layer, medium weathered rock, bedrock.
Some of our productions
Rock bits perform stage breaking and drilling;
Small barrel facilitates the coring operation, large barrel performs stage breaking.
Applicable layers: backfilling layer, medium weathered rock, bedrock.
Some of our productions
 |  |  |

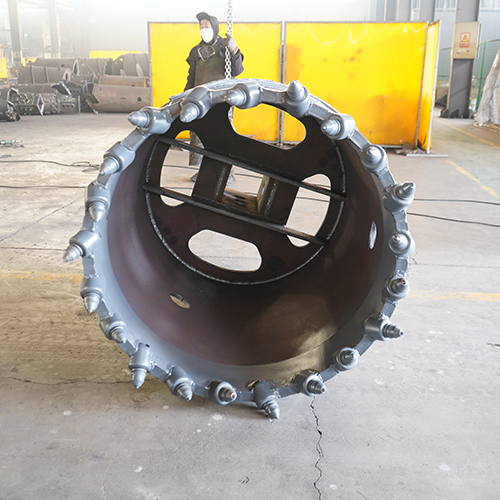

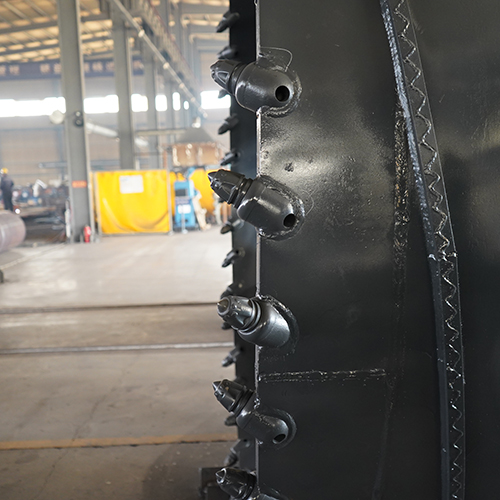

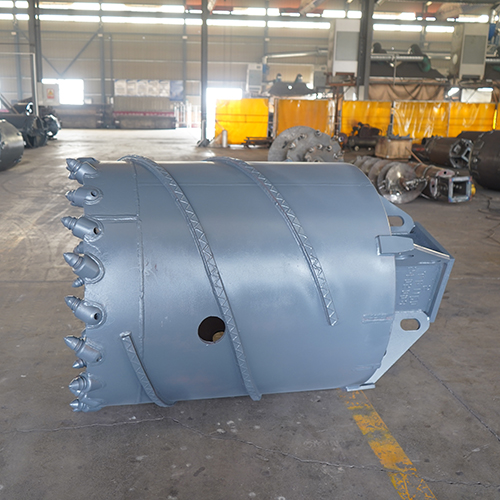

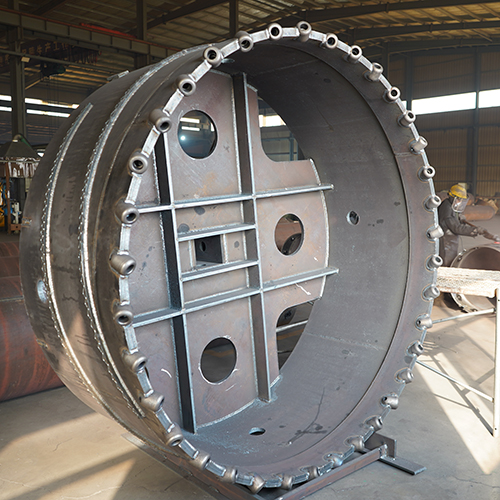

| This is a large diameter core barrel. We ensure the strength of the core barrel by designing additional reinforcement plates. | Limta core barrel adopts a full guide bar design, and its function is to prevent suction holes. | This is a bottom view, with each set of three drilling teeth at three angles to ensure the cutting surface. |
 |  |  |

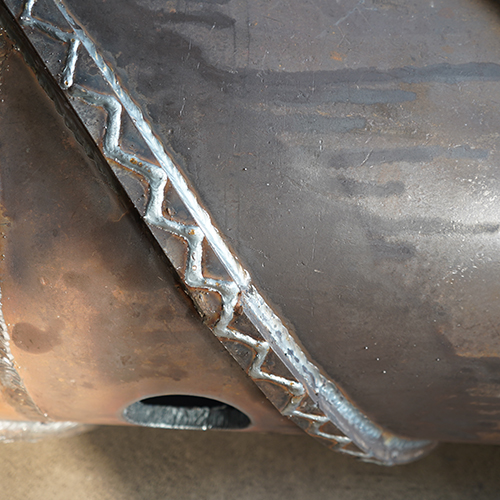

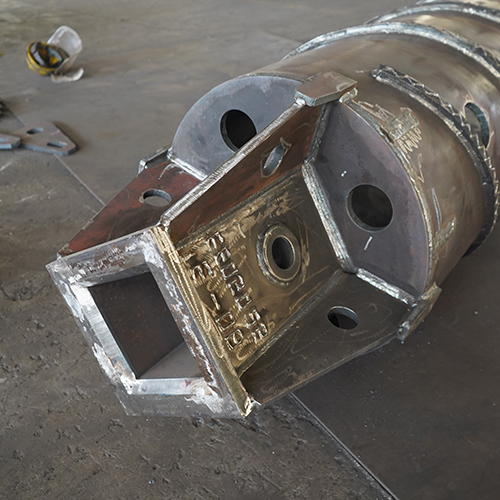

| This is a Kelly box that is currently being polished. Sizes can be customized. | The suitable teeth: B47K19, B47K22, B47K25, C31 etc that as the same standard as Betek. | This is a wear-resistant welding bead design. |
