Kelly Swivel Joint for Drilling Kelly Bar Pile Foundation

Use: Rotary Rig Kelly Bar
Pressure Form: Interlocking, Friction and combined
Packaging Details：Wood case outside,bullet teeth in plastic cases inside
Application: Bauer, Soilmec, Mait, IMT, Casagrande Rotary Drilling Rig

According to Customer Requirements

Quantity

report download

Limta catalogue

CUSTOMIZED INQUIRY

Product Introduction
The kelly swivel of a rotary drilling rig is an important component that connects the kelly bar and the rotary drive. It is mainly used to lift, lower, and rotate the kelly bar, while transmitting torque and pressure during the drilling process.
Function of the swivel

1.Connection function: Connect the power head and drill rod to transmit torque and axial force.

2.Guidance function: Ensure that the drill rod remains vertically aligned during lifting or lowering, reducing deflection.

3.Protective function: Reduce wear between the kelly bar and the rotary drive, and extend equipment life.

4.Flexibility: Allow the kelly bar to have a certain degree of freedom during rotation and adapt to hole position deviations.

Applicable brands
1.Domestic: Sany, XCMG, Sunword, etc.

2.International: Bauer, Casagrande, Liebherr.

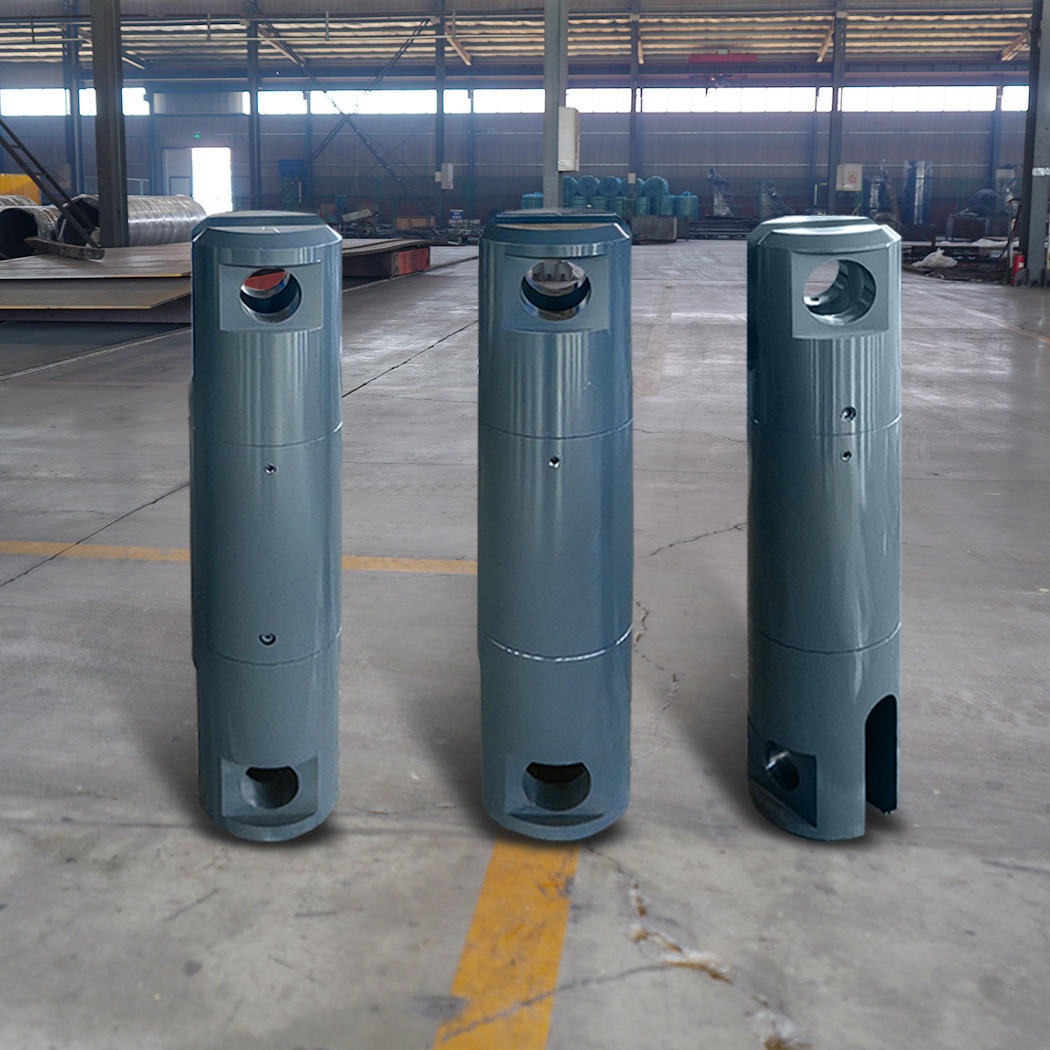

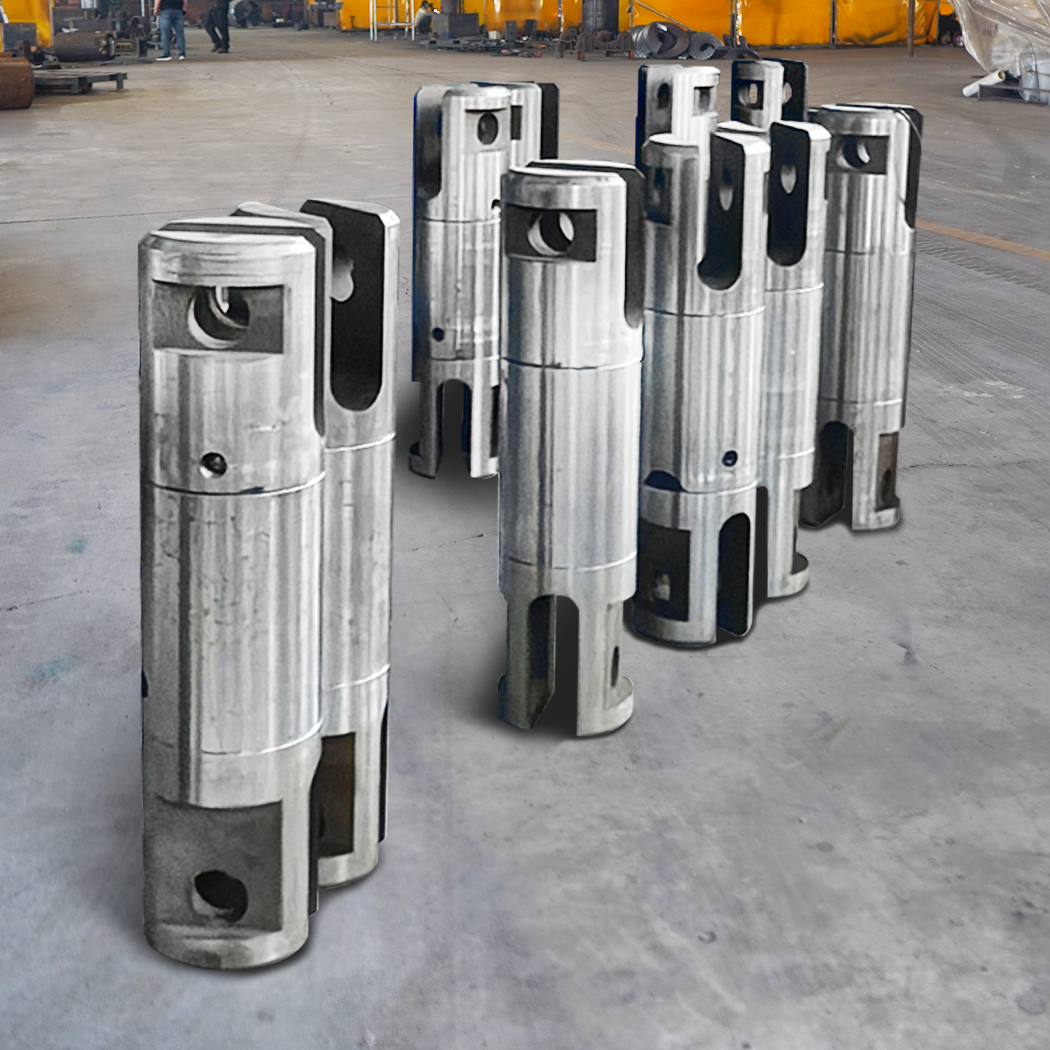

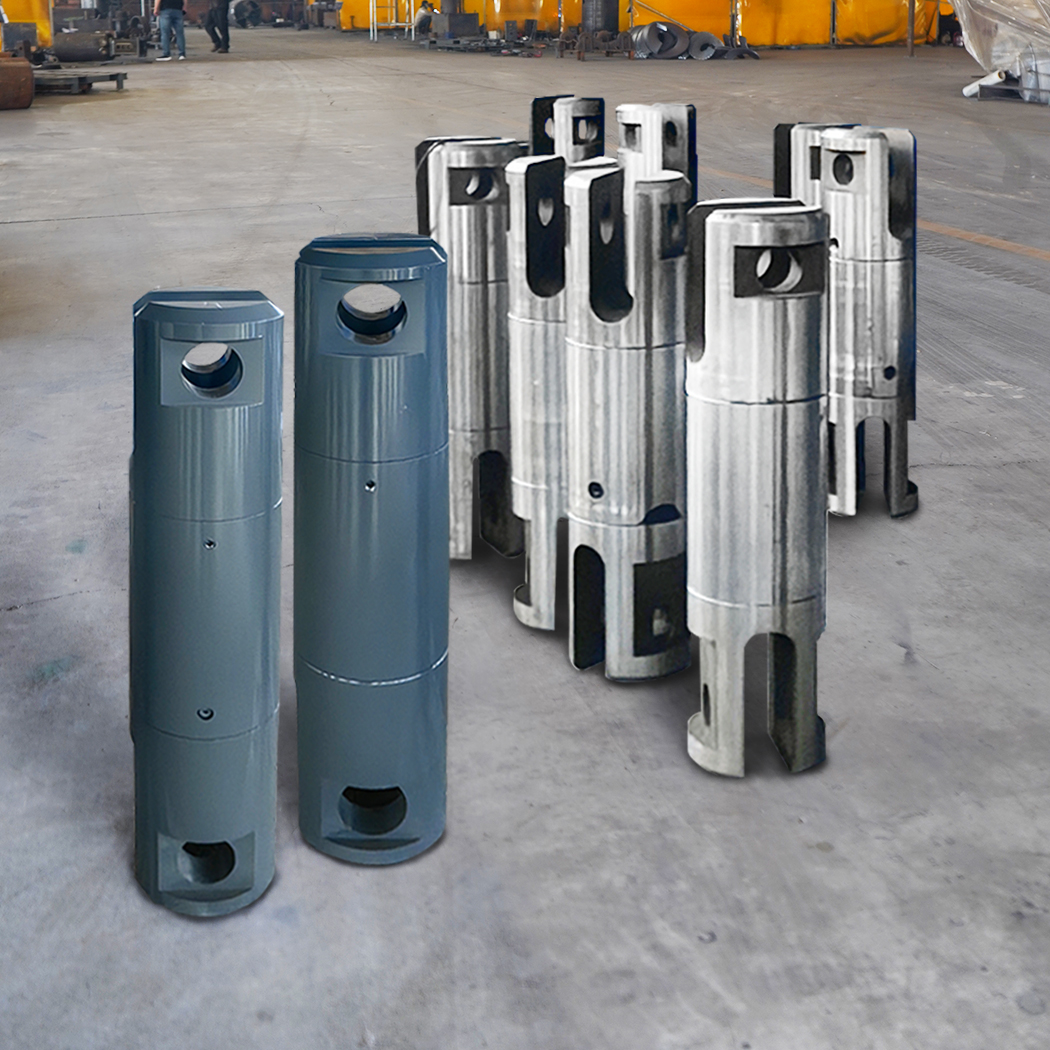

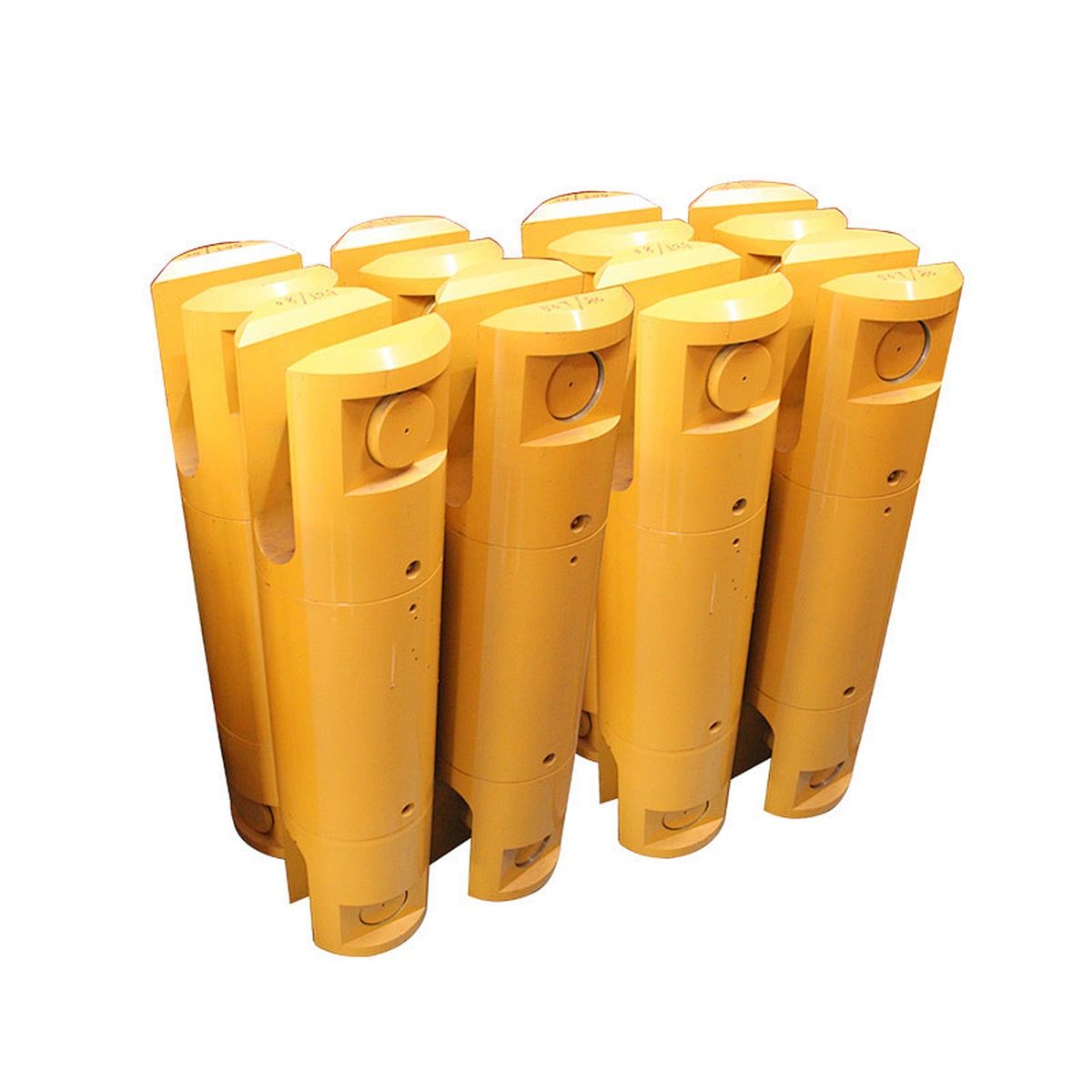

Some of our models

Product parameters

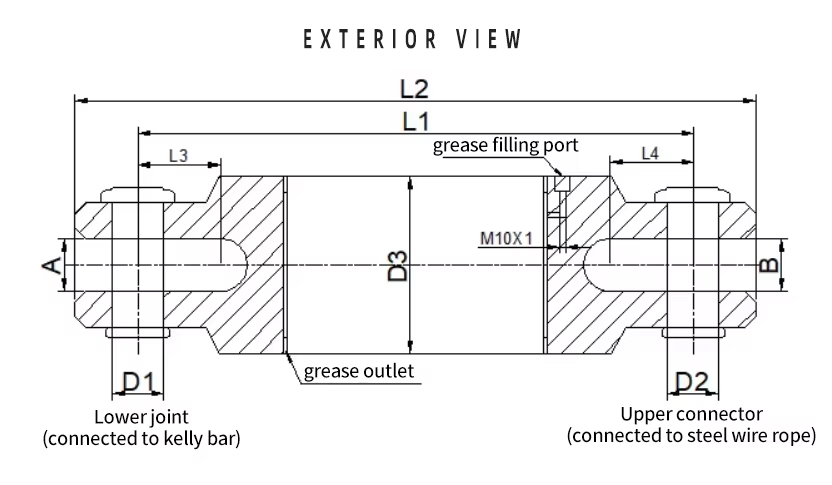

Performance parameter table (Basic size)
Type	A(mm)	B(mm)	D1(mm)	D2(mm)	D3(mm)	L1(mm)	L2(mm)	L3/ L4
TL125	42	42	∅45	∅45	∅125	456	562	76
TL150	53	53	∅50	∅50	∅150	498	618	80
TL170	57	57	∅55	∅55	∅170	540	660	80
TL170	55	55	∅55	∅55	∅170	574	694	90 /100
TL190	62	62	∅60	∅60	∅190	570	700	88
TL210	82	72	∅80	∅80	∅210	770	930	120/110
TL220	82	82	∅80	∅80	∅220	750	930	90
TL260	82	84	∅100	∅100	∅260	830	1070	140/130
Performance parameter table (Basic size)
Type	Number of bearings		Adaptive drill machine torque (KN·m)			Kelly bar core articulated steel pipe outside diameter(mm)
TL125	4		120-160			≥120
TL150	4		120-160			≥120
TL170	4		180-260			≥160
TL170	4		180-260			≥160
TL190	4		280-360			≥200
TL210	5		400			≥200
TL220	5		400			≥200
TL260	5		500			≥240

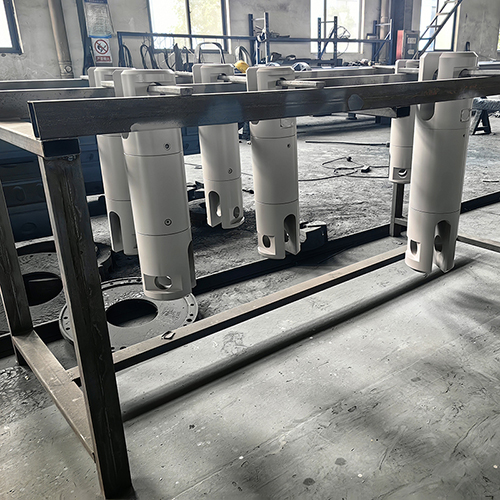

Our Workshop

Limta is a high-tech enterprise specializing in the research and development, production, and manufacturing of rotary drilling tools. The factory covers an area of 12000 square meters and is equipped with modern production workshops, precision machining equipment, and a complete testing system. We are committed to providing highperformance and high reliability rotary drilling tool products for the global basic engineering field.

Technical research and development

We have a research and development team consisting of more than 10 senior engineers, focusing onstructural optimization, material innovation, and process upgrading of rotary drilling tool casings.With over 50 skilled technicians covering key processes such as forging, heat treatment, welding, and precision machining, we ensure product accuracy and quality stability.

Cases

Limta factory provides drilling tool casing products for well-known domestic and foreign rotary drilling rig brands, such as Bauer, Soilmec, Sany, XCMG, Sunward, Zoomlion, etc. It has strict quality management and delivery management,and has more than ten years of foreign trade experience. Its products are exported to Southeast Asia,West Asia, the Middle East, Australia, Russia, Africa and other regions, and are widely used in various pile foundation projects such as high-speed railways, bridges, subways, high-rise buildings, etc.
